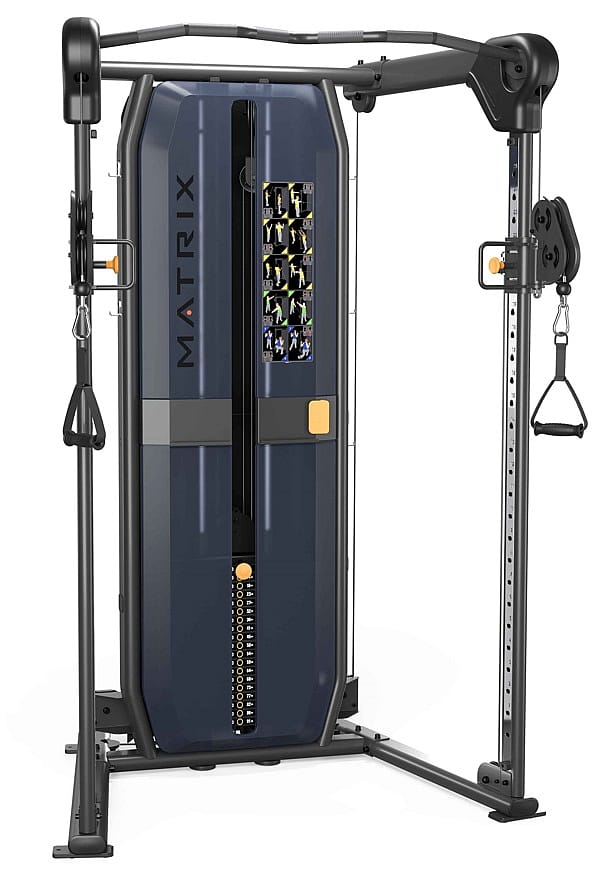

Matrix Home Gym Functional Trainer used

The Matrix Home Gym Functional Trainer, already used in fitness clubs around the world, is now available for your home.

This incredibly smooth functional trainer allows you to perform explosive athletic movements and heavy, controlled movements for a true full-body workout.

The club-quality components can withstand the most intensive use, and the low, open frame design means that our functional trainer fits into your space as if it were made for it—because it is.

Please note: this machine has been thoroughly checked by us, is in perfect condition and comes with a 6-month warranty.

Matrix Home Gym Functional Trainer

1:2 Pulley Ratio
Our standard weight stack is labeled 68 kg, but contains 136 kg of total weight. When both sides of the functional trainer are used simultaneously, the user feels a maximum effective resistance of 68 kg. This 1:2 ratio is ideal for heavy, controlled movements that build muscle and strength, such as a chest press or lat pulldown.

1:4 pulley ratio
When only one side of the functional trainer is used, the maximum effective resistance felt by the user is 34 kg / 75 lbs. One-sided training activates additional integrated pulleys, creating a unique 1:4 pulley ratio. This allows users to perform explosive, athletic movements without the weight stack jumping due to cable slack. In addition, the cable goes much further, ideal for walking lunges and other movements that require more distance.

Thoughtful design
A total height of only 212 cm / 83.5" makes it easy to fit our functional trainer into spaces with lower ceilings. Cleanly routed cables and a walk-through frame provide freedom of movement and a more attractive aesthetic for the home.

Stylish, shielded, and safe
A commercial-grade shielding cover provides a sleek and robust appearance while safely shielding moving parts, reducing noise, and preventing dust and debris from falling into the stack.

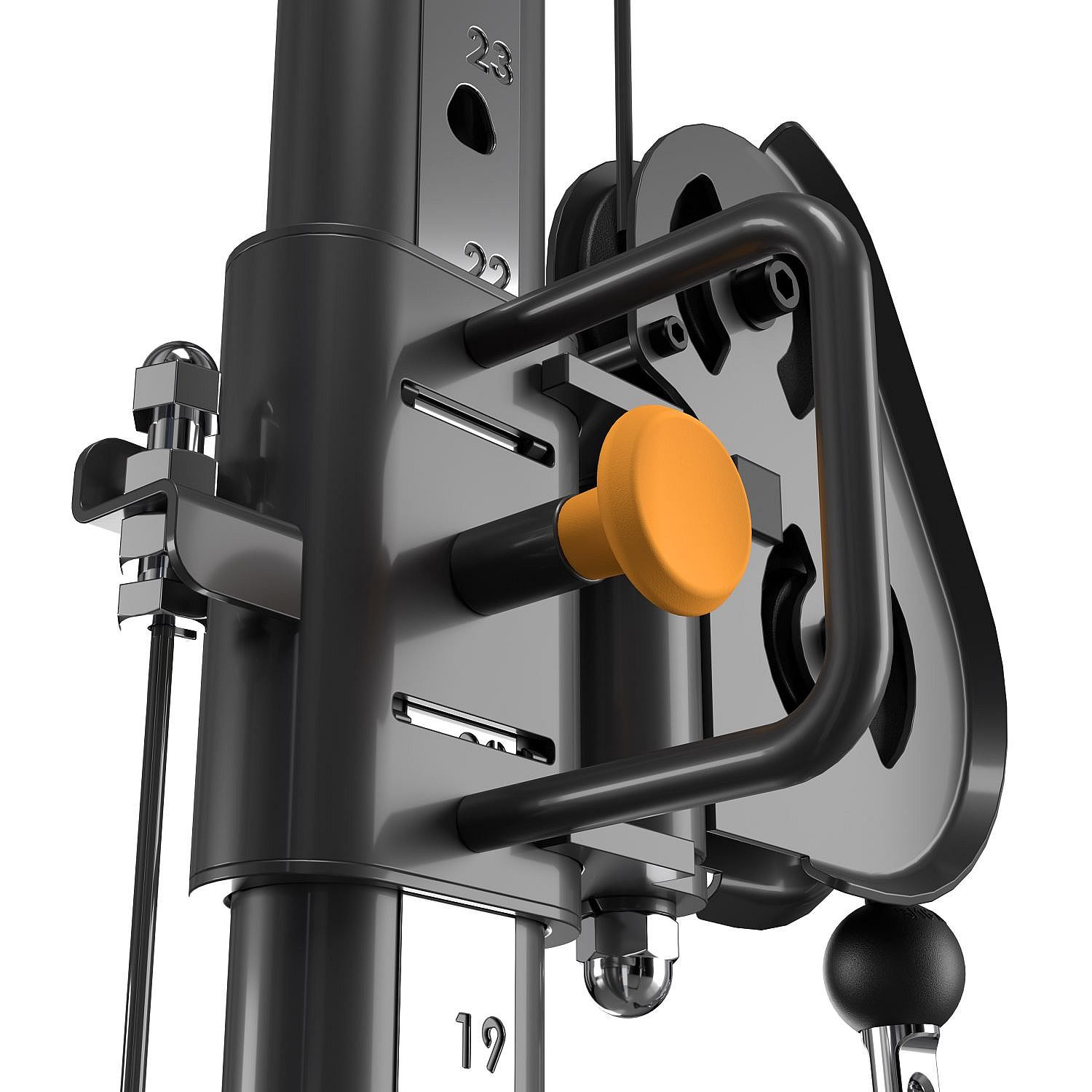

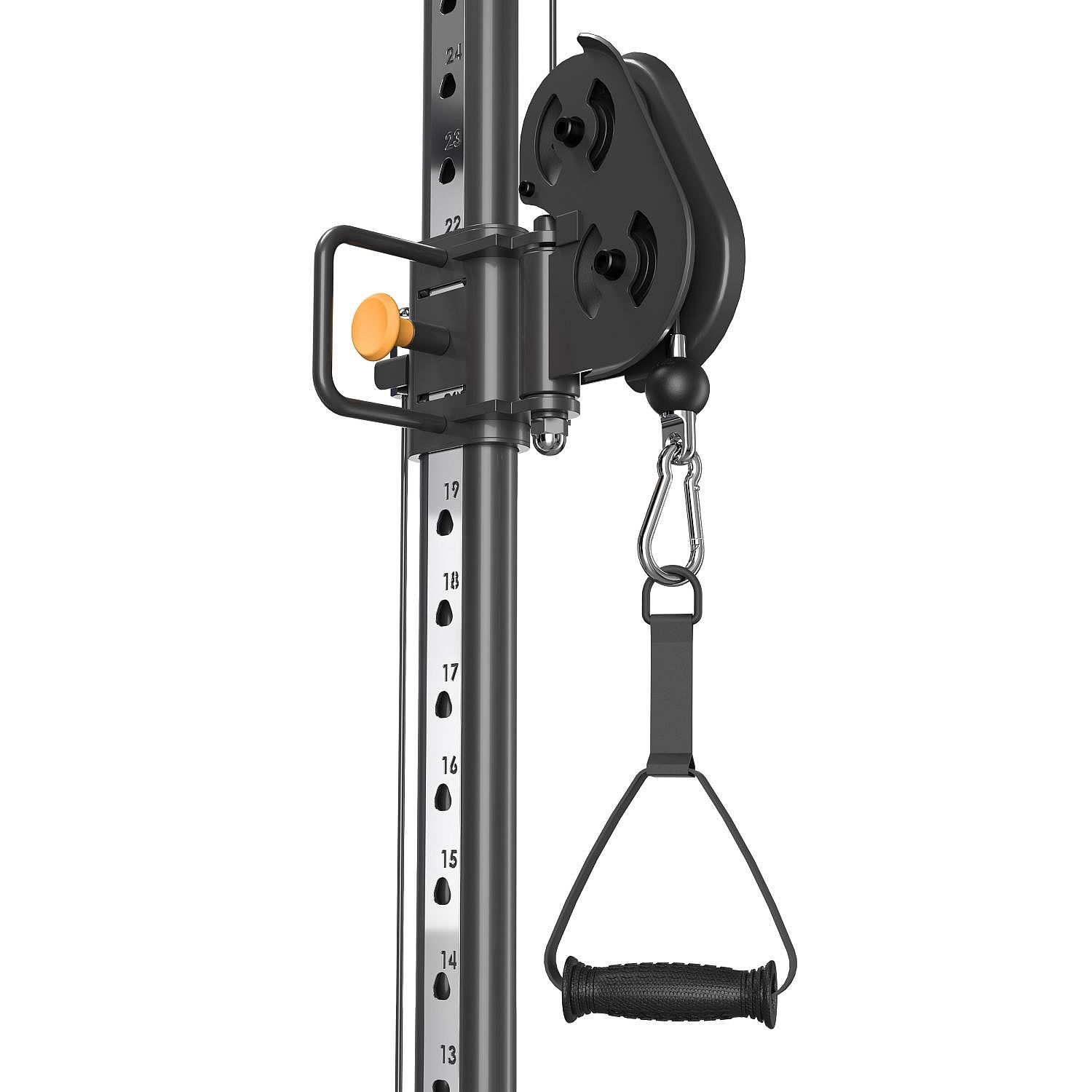

Easy adjustments
Fully enclosed pulley handles make one-handed adjustments easy and offer the ability to lock in bands for added training variety.

Quick weight changes
The central stack streamlines weight changes between sets.

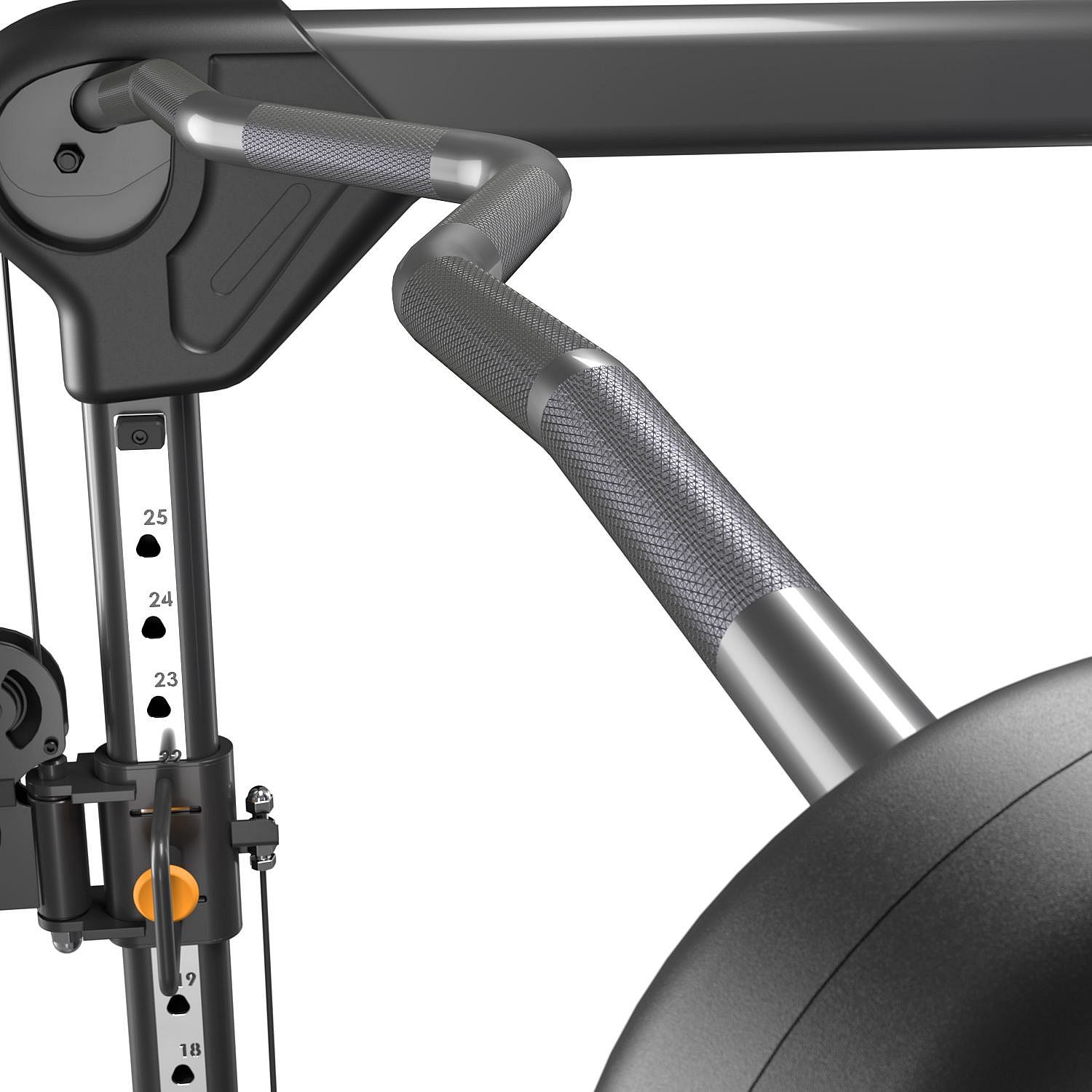

Pull-up Bar
Knurled pull-up bar provides both wide and narrow grips for multiple bodyweight exercises.

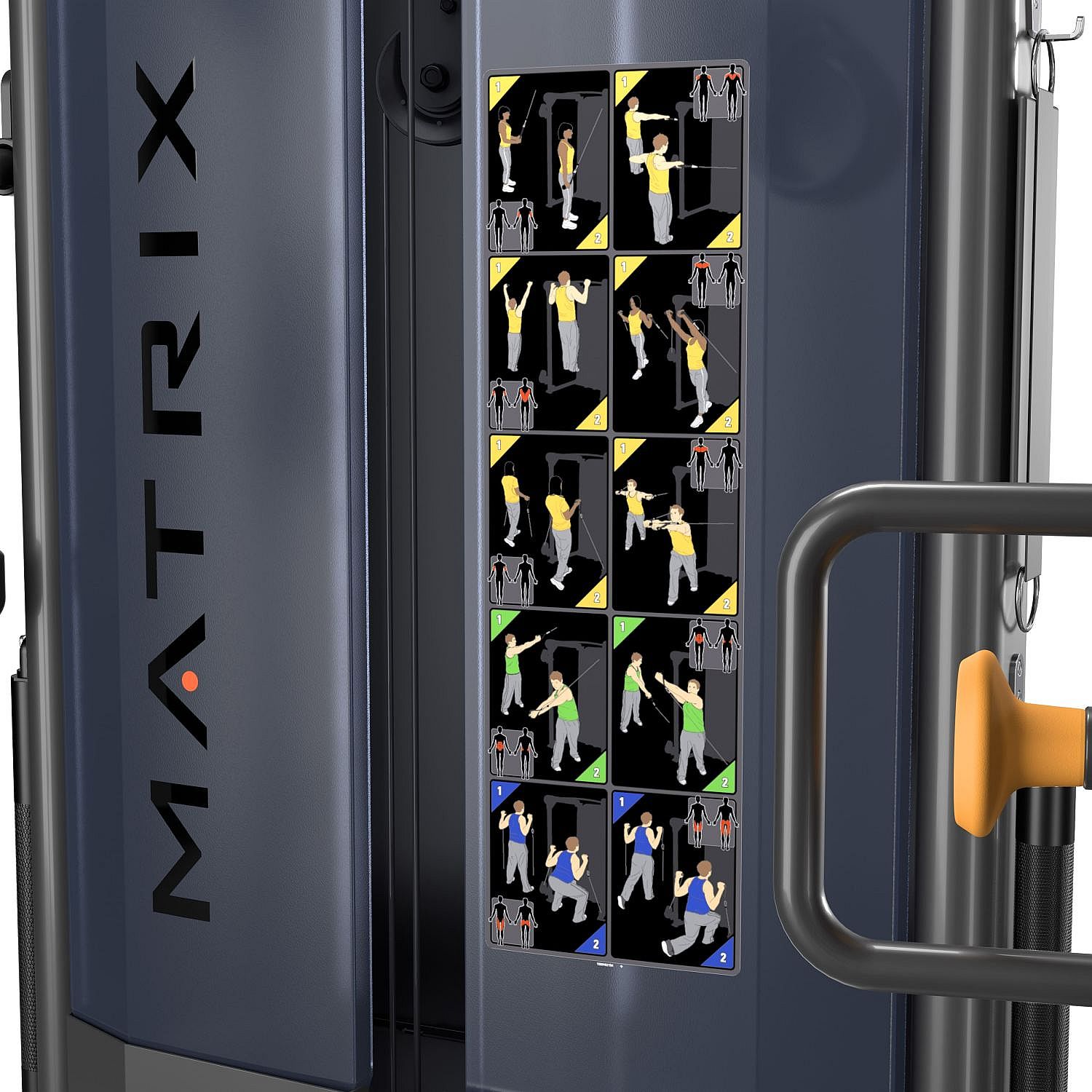

Exercise stickers
Color-coded exercise cards help you focus on specific muscle groups.

Device holder
Magnetic device holder makes it easy to add training apps, videos, or music.

Height adjustments
25 height adjustments offer variety in exercises and allow for progression in small increments.

Specifications
- Weight stack: 136 kg / 300 lbs. (standard); 45 kg / 100 lbs. (FTRHS Heavy Stack Add-on)
- Effective resistance: 1 handle in use- 1:4 Pulley Ratio (34 kg / 75 lbs. standard; 45 kg / 100 lbs. Heavy Stack Add-on)
2 handles in use- 1:2 Pulley Ratio (68 kg standard; 91 kg extra heavy stacks)
- Product weight: 245 kg (standard); 290.5 kg (with extra heavy stack)
- Stack protection weight: Full front and rear shields
- Adjustment options: 25 starting positions for the handles; enclosed sled handles and color-coded pull pins
- Dimensions (LxWxH): 129.5 x 137.5 x 212 cm / 51 x 54 x 83.5 in.
- Cable travel (both handles in use): 231 cm / 91 in.
- Max. user weight: 136 kg / 300 lbs.
- Max. training weight: 180 kg / 400 lbs.
- Handles: 2 D-handles (standard); straight bar, EZ curl bar, rope, sports handle, ankle cuff (FTRHP Optional handle package added)
- Multi-grip pull-up bar: Knurled, allows users to perform wide or narrow grip pull-ups
- Plates: Color-coded muscle indicators, illustrations of start and end exercises
- Storage: 5 storage hooks; magnetic clip included to store phone or tablet

Features:
- Central weight stack streamlines weight changes between sets and exercises
- 25 height adjustments offer exercise variety and allow for small-step progression
- Color-coded exercise cards help you focus on specific muscle groups
- 1:2 pulley ratio supports muscle and strength building
- 1:4 pulley ratio for explosive, athletic movements
- 100 lb. heavy weight stack and handle package extensions available
- Weight block 136 kg (standard); 45 kg (optional extra weights FTRHS)
- Effective resistance when using both handles 68 kg effective resistance (91 kg with optional extra weights FTRHS); pulley ratio 1:2)
- Effective resistance when using one handle 34 kg effective resistance (45 kg with optional extra weights FTRHS); pulley ratio 1:4)
- Cable length (both in use) 231 cm
- Max. Max. training weight 180 kg
- Max. Max. user weight 136 kg
- Dimensions (L x W x H) 129.5 x 137.5 x 212 cm
- Product weight 245 kg (standard); 290.5 kg (with optional extra weights)

Optionally available:
- FTR30 Functional Trainer handle package includes straight bar, EZ-curl bar, rope, sports handle, and ankle cuff.- FTR30 Functional Trainer extra 45 kg heavy weight stack takes functional training to the next level.
