Matrix Home Gym Functional Trainer

The Matrix Home Gym Functional Trainer, already used in fitness clubs around the world, is now also available at home.

This incredibly smooth functional trainer lets you perform explosive athletic movements and heavy, controlled movements for a true full-body workout.

The club-quality components can withstand the most intense use and the low, open frame design means our functional trainer fits into your space like it was made for it - because it was made for it.

Matrix Home Gym Functional Trainer

1:2 Pulley Ratio
Our standard weight stack is labeled as 68kg, but contains 136kg of total weight. When both sides of the functional trainer are used simultaneously, the user feels a maximum effective resistance of 68 kg. This 1:2 ratio is ideal for heavy, controlled movements that build muscle and strength, such as a chest press or lat pulldown.

Pulley ratio 1:4
When only one side of the functional trainer is used, the maximum effective resistance felt by the user is 34 kg / 75 lbs. Unilateral training activates additional integrated pulleys, creating a unique 1:4 pulley ratio. This allows users to perform explosive, athletic movements without the weight stack jumping due to cable slack. In addition, the cable goes much further, ideal for walking lunges and other movements that require more distance.

Thoughtful design
An overall height of only 212 cm / 83.5" makes it easy to fit our functional trainer into spaces with lower ceilings. Cleanly routed cables and a walk-through frame provide freedom of movement and a more attractive aesthetic for the home.

Stylish, Shielded and Safe
A commercial-grade shield provides a sleek and rugged appearance while safely shielding moving parts, reducing noise and keeping dust and debris from falling into the stack.

Easy adjustments
Fully enclosed pulley handles make one-handed adjustments easy and offer the ability to tighten straps for added training variety.

Quick weight changes
The center stack streamlines changing weights between sets.

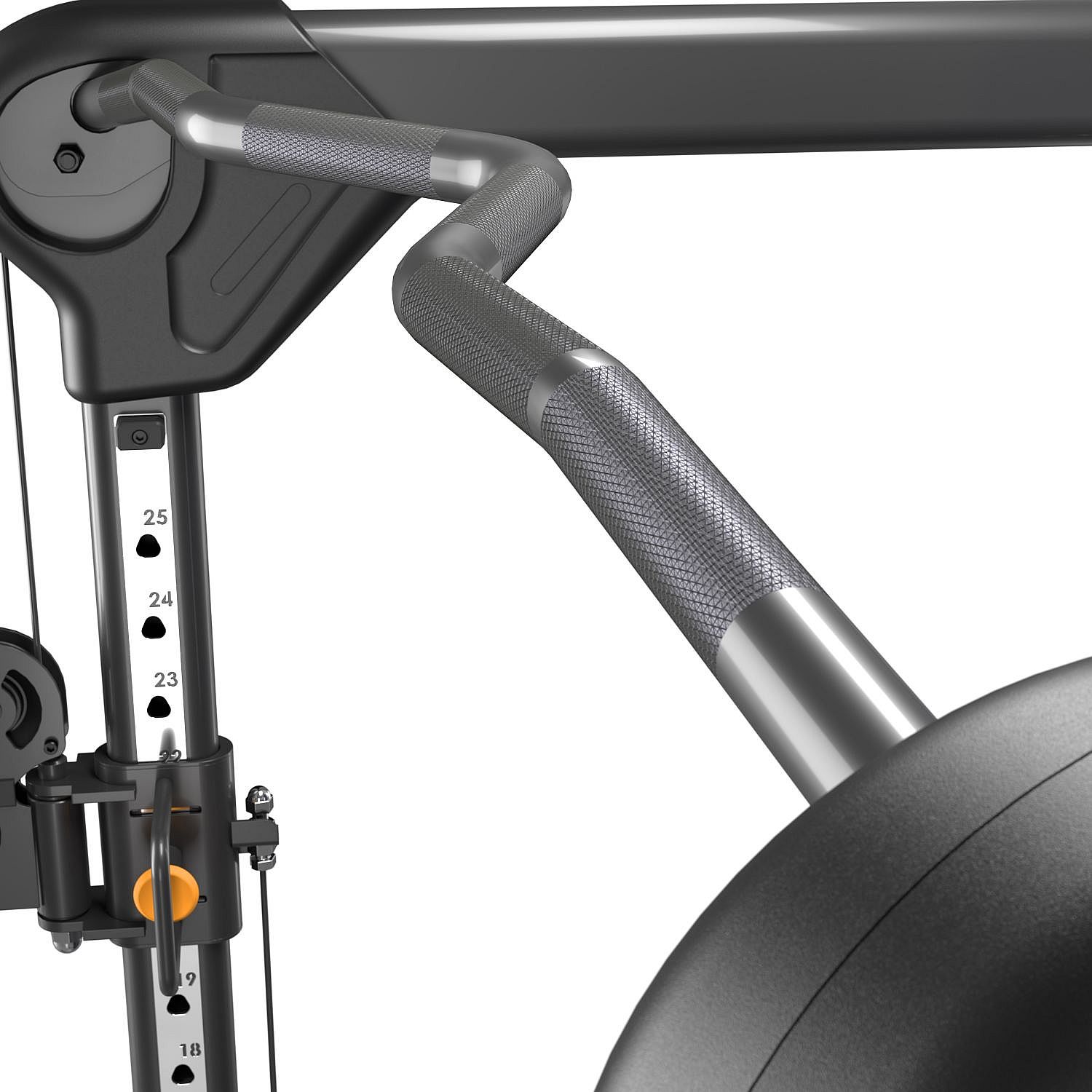

Pull-up Bar
Knurled pull-up bar provides both wide and narrow grips for multiple bodyweight exercises.

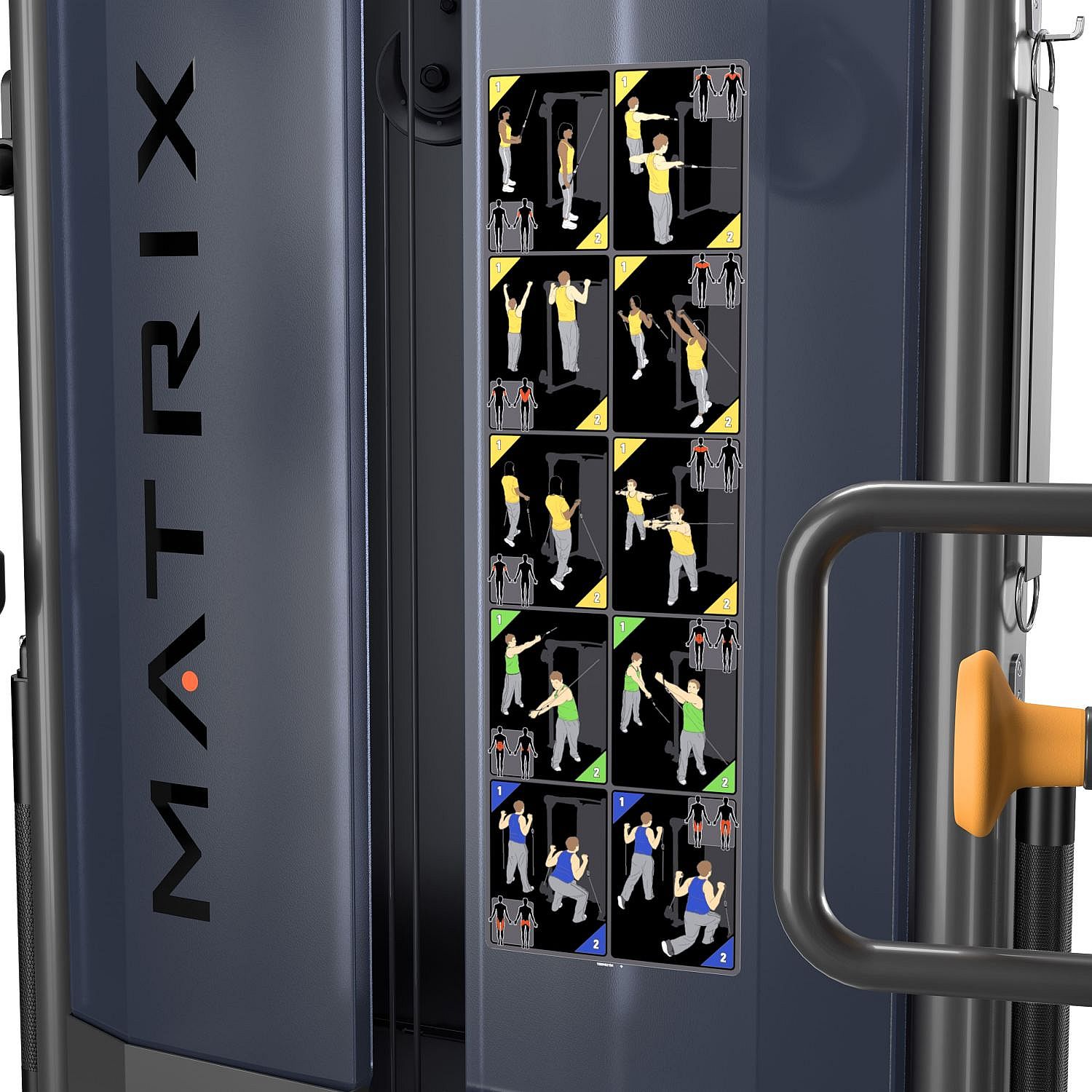

Exercise stickers
Color-coded exercise cards help you focus on specific muscle groups.

Device holder
Magnetic device holder makes it easy to add training apps, videos or music.

Height adjustments
25 height adjustments offer variety in the exercises and allow progression in small steps.

Specifications
- Stack weight: 136 kg / 300 lbs. (standard); 45kg / 100lbs. (FTRHS Heavy Stack Add-on)
- Effective resistance: 1 handle in use- 1:4 Pulley Ratio (34 kg / 75 lbs. standard; 45 kg / 100 lbs. Heavy Stack Add-on)
2 levers in use - 1:2 ratio of pulleys (68 kg standard; 91 kg extra heavy stacks)
- Product weight: 245 kg (standard); 290.5 kg (with extra heavy stack)
- Weight Stack protection: Full front and rear shields
- Adjustment options: 25 starting positions for the handles; enclosed sled handles and color-coded pull pins
- Dimensions (LxWxH): 129.5 x 137.5 x 212 cm / 51 x 54 x 83.5 in.
- Cable routing (both handles in use): 231 cm / 91 in.
- Max. user weight: 136 kg / 300 lbs.
- Max. Training weight: 180 kg / 400 lbs.
- Handles: 2 D handles (standard); straight bar, EZ curl bar, rope, sport handle, ankle cuff (FTRHP Optional handle pack added)
- Multi-grip pull-up bar: Serrated, allows users to perform wide or narrow grip pull-ups
- Signs: Color-coded muscle designations, illustrations of start and end exercises
- Storage: 5 storage hooks; magnetic clip included to store phone or tablet

Features: lb. heavy weight stack and handle package extensions available
- Weight block 136 kg (standard); 45 kg (optional additional weights FTRHS)
- Effective resistance when using both handles 68 kg effective resistance (91 kg with optional additional weights FTRHS); pulley ratio 1:2)
- Effective resistance when using one handle 34 kg effective resistance (45 kg with optional extra weights FTRHS); pulley ratio 1:4)
- Cable length (both in use) 231 cm
- Max. Max. training weight 180 kg
- Max. Max. user weight 136 kg
- Dimensions (L x W x H) 129.5 x 137.5 x 212 cm
- Product weight 245 kg (standard); 290.5 kg (with optional additional weights)

Optional available:
- FTR30 Functional Trainer handle package includes straight bar, EZ-curl bar, rope, sports handle and ankle cuff.
- FTR30 Functional Trainer extra 45kg. heavy weight stack takes functional training to the next level.
